IHMC Robotics gets Silver Medal in Cybathlon

IHMC Robotics gets Silver Medal in Cybathlon

We competed in the first ever Cybathlon in October, 2016, in Zurich, Switzerland. The Cybathlon is a competition for disabled athletes using advanced assistive devices, including robotic technologies. This is an international competition with teams from the leading companies and universities from around the world.We are the only United States team competing in the Powered Exoskeleton Race. The Cybathlon is an important event to accelerate technology and showcase the advancements being made in robotics and other technologies to assist persons with disabilities.

The project is lead by Peter Neuhaus. Please contact him for more information pneuhaus@ihmc.us


This is a practice run of the full Cybathlon Powered Exoskeleton Course. IHMC will be competing in the Powered Exoskeleton Race on October 8, 2016 in Zurich, Switzerland. The race consists of 6 tasks with a 10-minute time limit. We are skipping one of the tasks, so this video shows only 5.
He did the slalom so many times that he started to get bored. Go figure, he's walking for the first time in many years and already he's bored. "Okay Mark, challenge accepted. Tomorrow you're doing stairs." Mark, who is paralyzed, is training for the Cybathlon. The Slalom is one of the 6 tasks.
Mark Daniel will be the pilot for IHMC Robotics entry in the Cybathlon 2016. This is Mark's first time standing and walking since he last evaluated IHMC's X1 exoskeleton in 2012.
Mark has a complete spinal cord injury, meaning he has no sensation below his midsection. So when standing in the exoskeleton, he does not know where his balance point is and if he is about to fall over. To help him learn how to balance, he needs feedback.

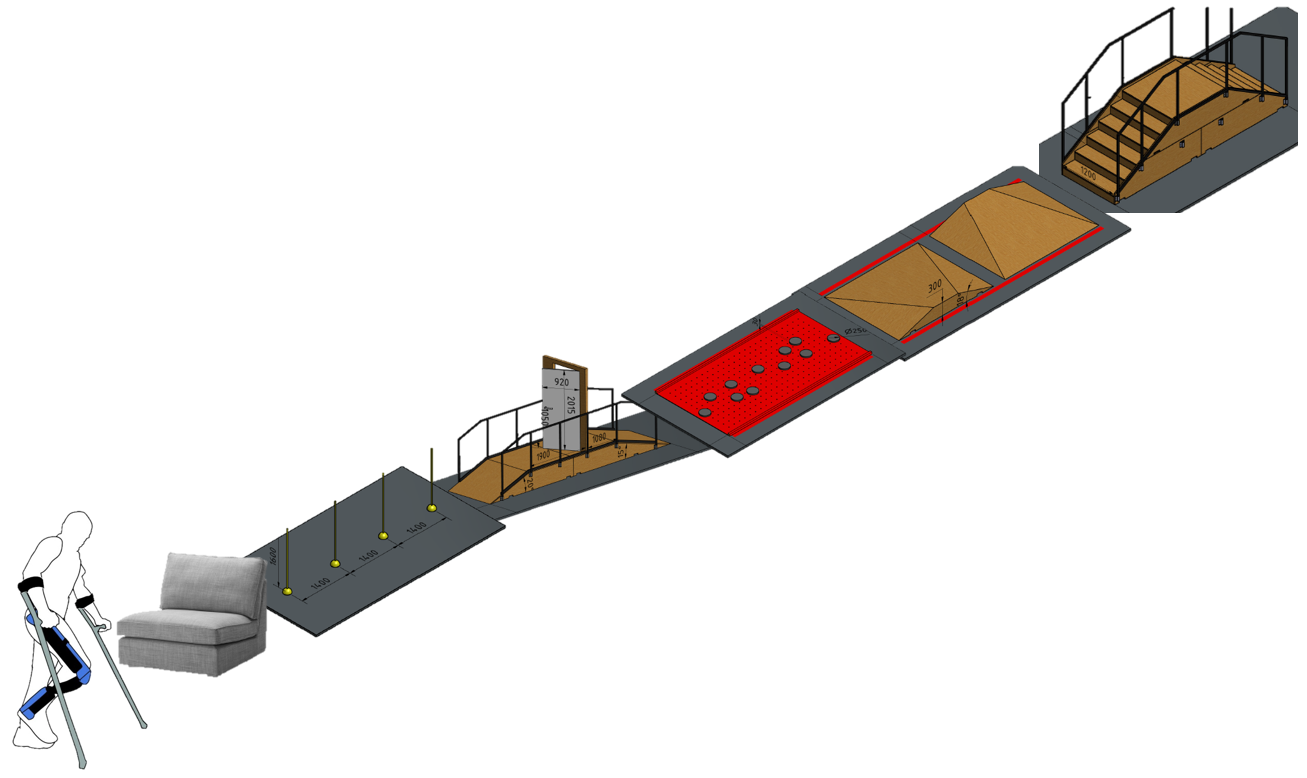

The Cybathlon Powered Exoskeleton Race

(click to expand)

The race requires that the pilot, the term used for the para-athlete wearing the exoskeleton, have a spinal cord injury with paralysis in the legs. The race starts with the pilot wearing the exoskeleton seated on the sofa. There are six tasks related to daily life: getting up from a sofa, walking around obstacles, up a ramp to open and walk through a door, walk over stepping stones, walk over uneven floor, and walk up and down stairs. There will be four identical obstacle courses with athletes competing head-to-head for the fastest time.


The Pilot

Mark Daniel was born and raised in Pensacola. He injured his spine almost 9 years ago and have been using a wheelchair since. In 2010, Mark assisted IHMC with evaluating their first powered exoskeleton. Since then, he been assisting IHMC with the evaluation and testing of their exoskeletons.

Mark recently joint IHMC as a full time research intern to work on the design, fabrication, and testing of the exoskeleton for the Cybathlon. Mark anticipates the Cybathlon to make a huge stride in technology and awareness to improve quality of life for those with loss of mobility due to injury or illness across the world. While working with IHMC, Mark will also be designing an off-road wheelchair for his next adventure. After the Cybathlon, Mark will make the first attempt by a paraplegic to complete the 4,834 mile American Discovery Trail.


The Team

IHMC Robotics is recognized internationally for our work on legged robots. One of our recent highlights in placing second in the DARPA Robotics Challenge Finals in 2015. The IHMC Robotics team is made up of engineers and scientists who are passionate about this event and devoted to developing assistive technologies. We have been developing exoskeletons and wearable robotic devices for the past 10 years with two of our previous powered exoskeletons
previous powered exoskeletons having assisted people with spinal cord injuries to walk.






The Technology

We are developing a new exoskeleton, Mina v2, for this challenge. This exoskeleton features a new actuator design that has been proven out in our Grasshopper exercise device. This version has the addition of powered ankles, which will lead to faster and more stable walking than with our previous versions. The foot plates have integrated pressure sensors to be able to measure how and where the pilot’s weight is on each foot. This will allow the pilot and control system to know when he is about to lose balance and either one can then make the proper adjustment.
