High Performance Actuators

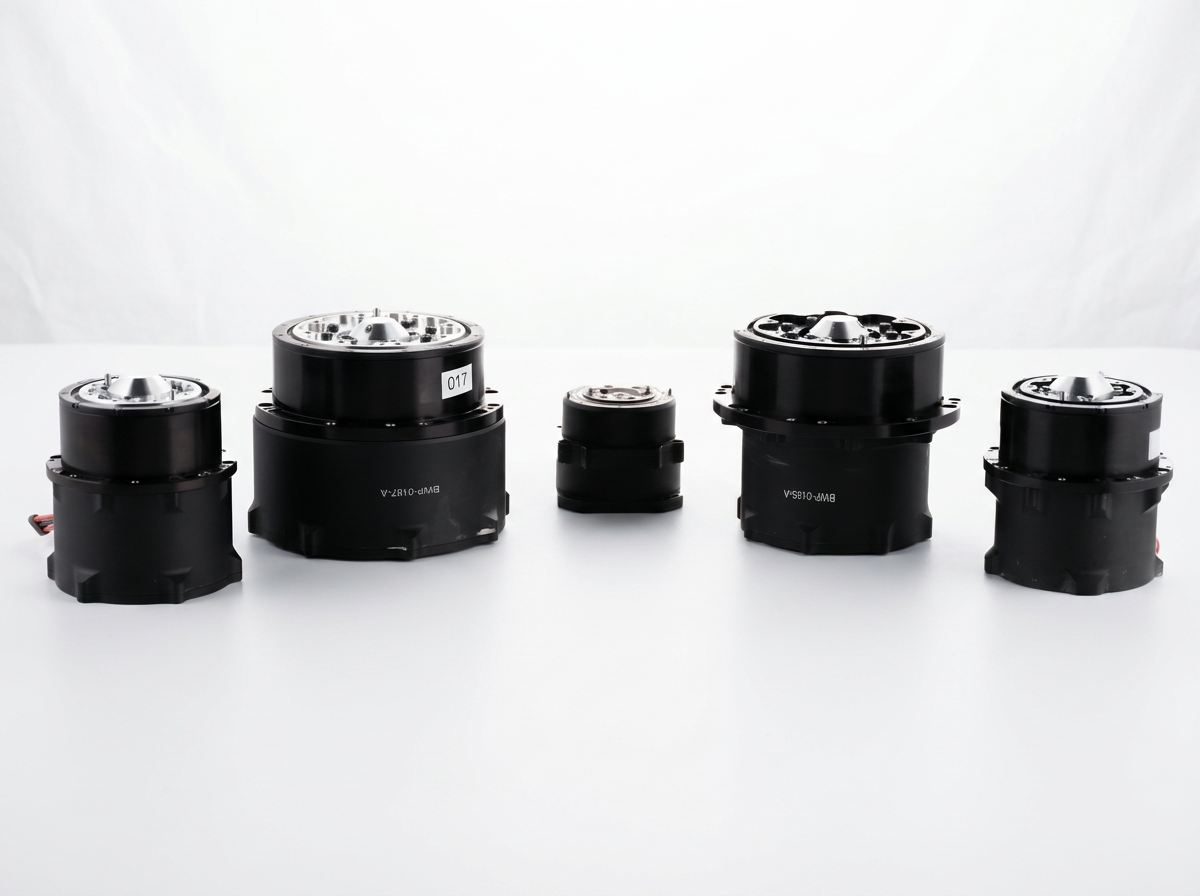

IHMC’s High Performance Actuators are powerful, light, and transparent, giving robots the (degrees of) freedom to do extraordinary things. Available in a range of sizes, there’s one for every use case.
Take a look inside.
Cycloidal Transmission
Strong. Safe. Silent. Each actuator is driven by a brushless DC motor and in-line cycloidal transmission. This affords our actuators quasi-direct drive performance at high gear ratios, low backlash, high torque density and efficiency, low backdriving torque, and resistance to impact.
Durable Construction
Highly athletic motion = high internal forces. Featuring numerous steel retaining features and high-load bearings, these actuators can take a beating and keep running strong.
Speed and Power
Dynamic on demand. Our actuators can supply high power and high precision, Useful for door opening, manipulating objects, human-speed walking, and martial arts. All of which have been tested on Alex.
Inspect the specs.
Click on a model to learn more.
CA-115
| Peak torque | 241.3 Nm |
| Continuous torque | 74.1 Nm |
| No load speed | 7.72 rad/s |
| Outer diameter | 118 mm |
| Length | 105.6 mm |
| Mass | 2.62 kg |
CA-85
| Peak torque | 176.5 Nm |
| Continuous torque | 54.3 Nm |
| No load speed | 8.60 rad/s |
| Outer diameter | 117 mm |
| Length | 105.6 mm |
| Mass | 2.18 kg |
CA-76
| Peak torque | 107.5 Nm |
| Continuous torque | 30.4 Nm |
| No load speed | 9.92 rad/s |
| Outer diameter | 83.0 mm |
| Length | 96.2 mm |
| Mass | 1.45 kg |
CA-68
| Peak torque | 78.1 Nm |
| Continuous torque | 22.6 Nm |
| No load speed | 9.92 rad/s |
| Outer diameter | 83.0 mm |
| Length | 95.9 mm |
| Mass | 1.32 kg |
CA-60
| Peak torque | 23.2 Nm |
| Continuous torque | 6.64 Nm |
| No load speed | 43.1 rad/s |
| Outer diameter | 63.0 mm |
| Length | 60.3 mm |
| Mass | 0.67 kg |
